3.7V 6700mAh ICR18650 Battery Pack

Short Description:

Rapid Quotes | Global Delivery | Get Solution in 1 business day | IEC62133, CE, UN38.3, RoHS, REACH

Lithium Battery is known as the battery industrial over for quality, safety, price, and lead time. Our 18650 lithium battery pack shows real rated capacity at the price every company can accept. The protection circuit can be built-in for safety control include over-charging, over-discharge, short-circuit, and temperature control. The additional connector made by JST, Molex & Hirose is also available with a custom length of wires.

Request Quote Datasheet Download as PDF

Product Detail

Product Tags

* Range validated by our R&D department with UN38.3 / IEC62133 / UL1642 certifications
* Li-ion cells with wide range of capacity (80-10500mAh)
* Built-in safety PCM developed by our R&D department
* Wires Types& Length (custom options available upon request)

Specification
Model No	ICR18650
Nominal capacity	6700mAh or Customized
Nominal voltage	3.7V
Charging cut-off voltage	4.2V±0.05V
Discharge cut-off voltage	3.0V
Dimension	542065mm or customized
Weight	80g
Cycle life	500-1000 times
Standard discharge current	0.5C
Max continuous discharging current	2.0C
Temperature range	Charge:0ºC~45ºC;32oF~113oF
	Discharge:-20ºC~60ºC;-4oF~149oF
	Storage:-20ºC~45ºC;-4oF~113oF
Key Features 1.High energy density. 2.Long cycle life,more than 500 cycles. 3.Environmental Friendly Chemistry 4.High Rate Charge/Discharge 5.No memory effects 5.High-output and high-load characteristics 6.Low self-discharge rate: under 3% self-discharge for one year 7.Comply with IEC62133 CB CE safety standard 8.Safe to ship : MSDS, UN38.3 cert. available

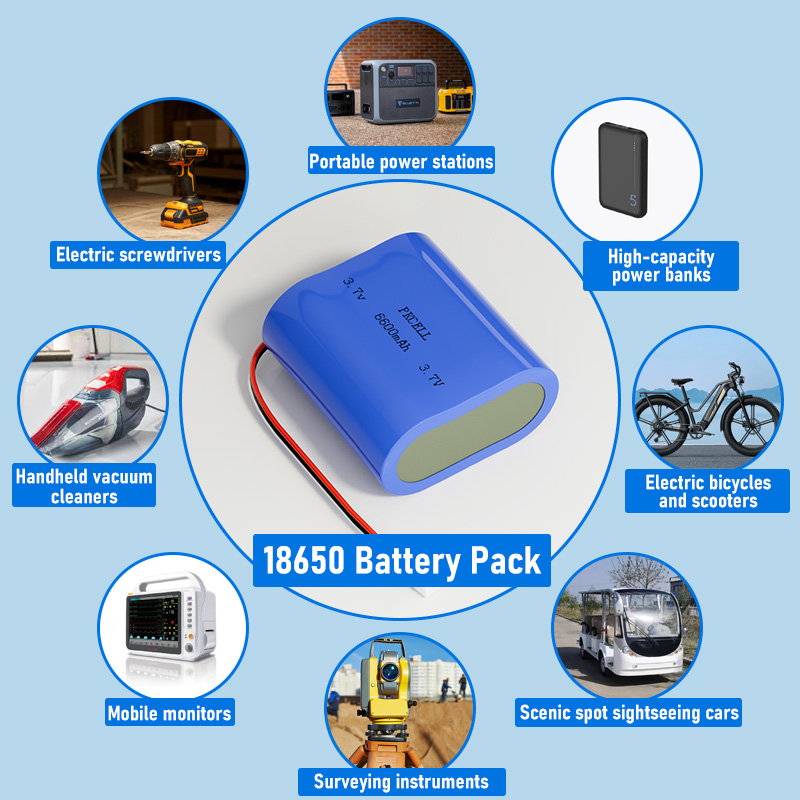

Application: power tools,flashlight, medical device,self-balancing scooter,power bank,electric motorcycle,E-cigarette and so on

CONTACT US for more information and customized solutions

View our standard range Lithium-Ion packs below:

Model	Size	Weight	Voltage	Capacity	Action
18650	362065mm	92.5g	3.7v	4400mAh	Request Quote Download
18650	20.5×38×68.5mm	102g	3.7v	6700mAh	Request Quote Download
18650	20.5×57×69.5mm	148g	3.7v	10050mAh	Request Quote Download
18650	20.5×75×69.5mm	200g	3.7v	13400mAh	Request Quote Download
18650	22×38×69mm	46g	7.4v	2600mAh	Request Quote Download
18650	19.5×69×76mm	95g	7.4v	5200mAh	Request Quote Download
18650	38.5×38×69mm	146g	11.1v	2600mAh	Request Quote Download
18650	38.5×38×134mm	425g	11.1v	6700mAh	Request Quote Download
18650-6S6P	38×40.5×201mm	540g	22.2v	6600mAh	Request Quote Download
