Key Highlights

• The energy density of 21700 batteries is approximately 20% higher than 18650 batteries, reaching close to 300 Wh/kg.
• 21700 batteries offer higher capacity compared to 18650 batteries. They can store up to 5000 mAh, while 18650 batteries peak at 3600 mAh.
• For electric vehicles like Tesla cars, 21700 cells provide increased efficiency and cost savings in battery packs.
• 18650 batteries excel in heat dissipation and are widely used due to their affordability and availability.
• The discharge rate of both batteries is suitable for high-powered devices, including flashlights and vape mods.

Transitioning forward, we’ll explore more about lithium battery types, starting with the 21700 and 18650 options.

Introduction

When choosing lithium batteries, understanding the differences between various types is crucial. Among these, the 18650 and 21700 battery models are top contenders. These batteries vary significantly in terms of battery capacity, discharge rates, and applicability. They are frequently found powering electric vehicles, flashlights, vape mods, and numerous consumer electronics. Whether your focus is energy density, size, or cost, careful consideration is necessary to determine the right one for your needs.

Let’s dive deeper into understanding the features of these two battery types.

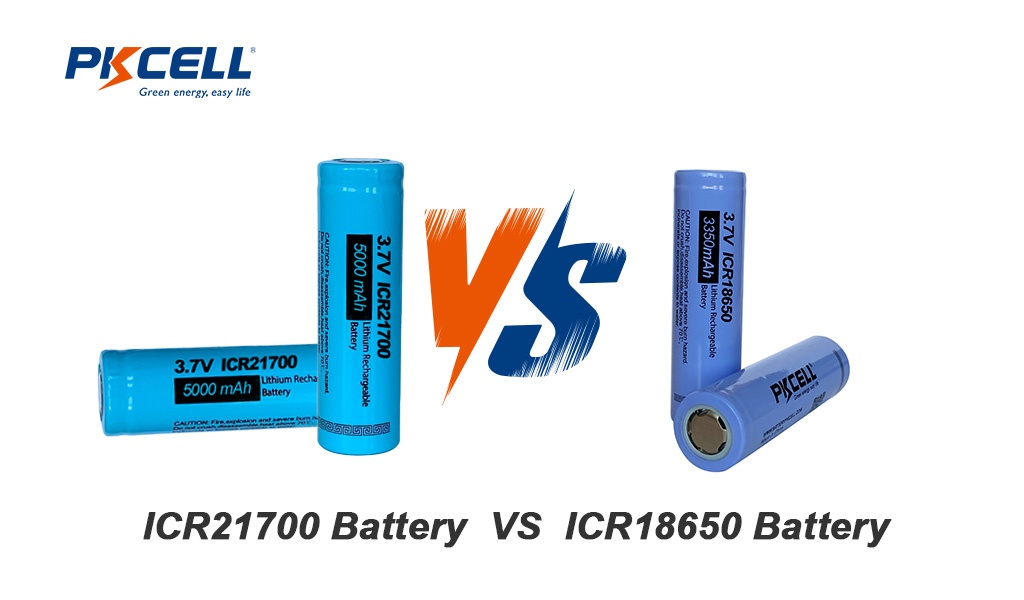

Understanding 18650 and 21700 Batteries

Lithium cells come in many shapes and sizes, but two of the most popular formats are the 18650 and 21700 models. The 18650 battery measures 18 mm in diameter and 65 mm in length and is renowned for its affordability and widespread use in laptops, flashlights, and scooters.

On the other hand, the 21700 battery, with dimensions of 21 mm by 70 mm, delivers superior energy density and capacity. It gained prominence in electric cars like Tesla models and is now a favourite for high-capacity applications.

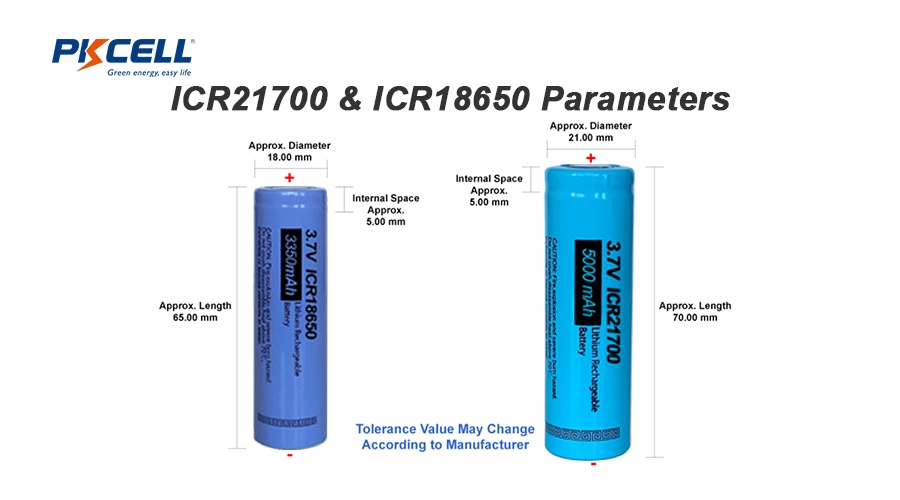

What Do the Numbers 18650 and 21700 Mean?

The numbers “18650” and “21700” denote battery sizes. The first two digits indicate diameter in millimeters, and the last three signify length. For example, 18650 batteries are 18 mm in diameter and 65 mm long, while 21700 batteries measure 21 mm and 70 mm.

Size differences translate to performance variations. The 21700’s increased thickness and diameter allow for a larger energy storage capacity, as seen in Tesla’s Model 3. However, this also affects its heat dissipation efficiency. Meanwhile, 18650 batteries are compact and better suited for smaller, high-drain devices like laptops and flashlights.

Recognizing these specifications ensures compatibility and facilitates selecting the best lithium battery for your device’s requirements.

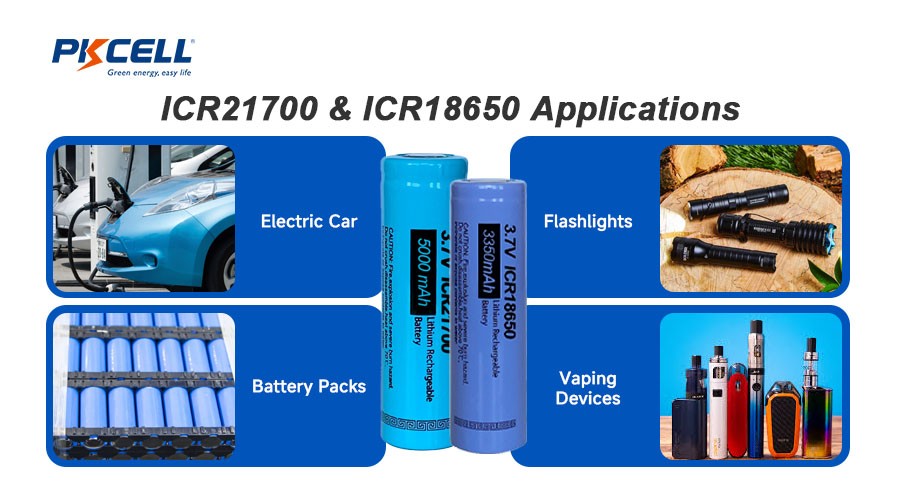

Common Uses of Each Battery Type

From electric cars to everyday gadgets, both batteries shine in unique areas. Here’s a closer look at their applications:

• Electric Cars: Tesla transitioned from 18650 to 21700 batteries for models like the Model 3, leveraging higher energy density.
• Flashlights: The compact size of both batteries makes them ideal for handheld devices, with 21700 batteries enhancing runtime.
• Battery Packs: While 18650s are affordable and abundant, the 21700 delivers superior power and compactness in battery arrays.
• Vaping Devices: For electronic cigarettes, 21700 batteries are prized for extended usage time, often exceeding 142Having the best battery behind your devices ensures optimal performance and longevity. Next, let’s compare their specifications directly.

Key Specifications Comparison

Understanding specifications like milliamp-hours (mAh) and watt-hours (Wh) is essential for choosing the right lithium battery. The 18650 has a maximum capacity of around 3600mAh, while the larger 21700 tops out at an impressive 5000mAh. Furthermore, energy density favours 21700 batteries, with nearly 300Wh/kg compared to 250Wh/kg of the 18650.

These differences directly impact real-world performance, making the 21700 ideal for compact, high-power applications. Keep reading to dive deeper into energy density, size, and overall battery design.

Capacity and Energy Density

The capacity and energy density of batteries set them apart in terms of usage. Below is a text table for comparison:

A 21700 battery packs almost 42% more capacity than its 18650 counterpart. This increased storage allows for extended runtime across various applications, from flashlights to electric cars. With higher energy density, 21700 batteries can deliver maximum performance in smaller spaces, ideal for modern electronic devices.

Understanding these metrics helps in selecting batteries tailored to your specific energy and runtime needs.

Size, Weight, and Form Factor

Size and weight are crucial when choosing between battery models. At 18 mm by 65 mm, 18650 batteries are smaller, lighter, and easier to integrate into compact devices like laptops and consumer electronics.

The 21700 lithium battery, measuring 21 mm by 70 mm, carries more capacity and energy density but adds volume and weight. In exchange for this bulkier form factor, devices like Tesla cars benefit from enhanced performance and efficiency.

The form factor difference ensures tailored use cases: 18650 for space-constrained devices, and 21700 for applications demanding higher energy output. Size matters, but so does your performance requirement.

Performance Differences in Real-World Applications

Performance is where 18650 and 21700 batteries exhibit distinct strengths. 21700 batteries excel in applications requiring long-lasting energy and high power output, like electric cars and vape mods. Conversely, 18650 batteries perform well in everyday electronics where cost and heat management are priorities.

Your choice boils down to whether you need maximum battery life and turbocharged discharge or prefer affordability and compactness. Let’s break this down further by exploring battery life and safety metrics.

Battery Life and Power Output

Battery life and power output are central considerations for any application. The 18650 battery, with its discharge rate and watt-specific ratings, offers reliable performance for devices like flashlights and laptops. Its compact size means it fits seamlessly into smaller designs.

On a larger scale, 21700 batteries provide extended battery life and superior output, powering electric vehicles to maximize their energy storage potential. With a higher watt range, the 21700 is perfect for high-powered tools and vape mods requiring consistent discharge rates.

Whether focused on portability or robust energy, these batteries cater to distinct preferences.

Heat Dissipation and Safety Considerations

Safety and heat management are crucial when choosing lithium batteries. The 18650, with its slimmer design, dissipates heat more efficiently during continuous high discharge rates, reducing the risk of overheating.

In contrast, the 21700 compensates for slower heat dissipation with advanced safety measures built by manufacturers like Panasonic and Samsung. Tesla’s innovative vent holes in their Model 3 batteries exemplify strategies to mitigate heat during high-energy demands.

Both battery types are designed for safety, ensuring dependable usage across various applications.

Conclusion

In conclusion, choosing between 21700 and 18650 batteries ultimately depends on your specific needs and applications. Each battery type has its unique advantages, including differences in capacity, performance, and size. Understanding these specifications will help you make an informed decision that aligns with your device requirements and usage patterns. If you are looking for a good rechargeable battery for your devices, whether you choose the larger 21700 or the smaller 18650 battery, we have a wide selection of both. Find the correct battery on our battery page, and get quotes.

Frequently Asked Questions

Can I use a 21700 battery instead of an 18650 in my device?

In some cases, you can replace a 18650 with a 21700 battery, but only if your device supports the specifications, including diameter. An adapter sleeve may be required to ensure proper fit and functionality. Always verify compatibility before switching batteries.

Are 21700 batteries safer than 18650 batteries?

While both 21700 and 18650 batteries have safety features, the larger size of 21700 batteries allows for better thermal management, potentially reducing overheating risks. However, overall safety depends on usage, quality of manufacture, and adherence to proper charging practices for both types.
