21700 Lithium Battery Guide: Specifications, Types, Uses, and 18650 Comparison
A 21700 battery is a rechargeable cylindrical cell format with nominal dimensions of about 21 mm in diameter and 70 mm in length. Its larger volume can support more capacity or higher power than a comparable 18650 design, but “21700” describes size, not chemistry, voltage, current rating, protection, or quality.
The right 21700 lithium battery must match the equipment’s electrical limits, physical space, terminal design, protection strategy, charging method, and duty cycle. This guide combines the practical topics from our original article with the specification detail buyers and engineers need to make a defensible choice.

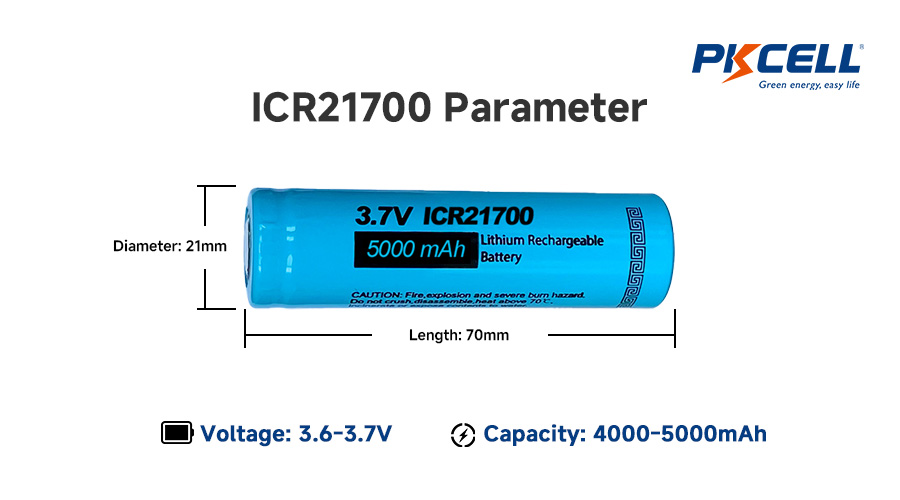

21700 Battery Key Facts
- Format: approximately 21 mm × 70 mm for a bare cylindrical cell; finished dimensions vary by model.
- Common lithium-ion voltage: many INR/NMC-family models are rated around 3.6 or 3.7 V nominal, but chemistry and charge limits must be verified.
- Capacity: many energy-oriented 21700 cells are marketed around 4,000–5,000 mAh, while power-oriented and newer designs may fall outside that range.
- Main strengths: more active material per cell, strong energy and power options, and potentially fewer cells for a given pack target.
- Common uses: power tools, flashlights, mobility products, industrial equipment, backup systems, and engineered battery packs.
- Compatibility: 21700 and 18650 cells are not direct physical substitutes.
What Is a 21700 Battery?
A 21700 is a cylindrical rechargeable-cell format. The designation is commonly read as approximately 21 mm in diameter and 70 mm in length. It belongs to the same general size-naming convention as 18650 and 26650 cells.
The name does not guarantee a particular cathode chemistry or performance level. Two 21700 cells can share the same nominal format yet differ substantially in capacity, continuous current, internal resistance, charge rate, cycle behavior, operating temperature, terminal geometry, and approved applications.
21700 Battery Specifications That Actually Matter
Published numbers only make sense when they come from the exact cell data sheet and include test conditions. The following fields should be checked before choosing a cell or requesting a custom pack.
| Specification | What It Means | Why It Matters |
|---|---|---|
| Nominal voltage | A reference value for the cell’s operating voltage | Used for pack voltage and energy calculations; it is not the maximum charge voltage |
| Maximum charge voltage | The upper voltage specified by the manufacturer | The charger and BMS must enforce the correct limit for the exact chemistry |
| Typical and minimum capacity | Charge available under defined test conditions | Minimum capacity is often more useful for guaranteed pack calculations |
| Continuous discharge current | Current allowed under stated temperature and cutoff conditions | Must support the real load without exceeding cell limits |
| Charge current | Standard and sometimes maximum permitted charging current | Affects charging time, heat, and aging |
| AC/DC resistance | Model-specific measures of internal electrical resistance | Influences voltage sag, heat generation, and parallel-cell sharing |
| Operating temperature | Permitted charge and discharge temperature ranges | Charging and discharging often have different limits |
| Dimensions and weight | Maximum physical size of the supplied cell | Essential for holders, modules, cooling paths, and protected-cell fit |
| Cycle-life conditions | Capacity retention after a defined test sequence | Cycle count is meaningless without depth of discharge, current, temperature, and end-of-life definition |
A Real Data-Sheet Example
Molicel’s published specification for its INR-21700-P45B lists 3.6 V nominal voltage, 4.5 Ah typical capacity, 4.3 Ah minimum capacity, 45 A continuous discharge under its stated cutoff condition, and maximum dimensions slightly above the nominal 21 × 70 mm name. These values illustrate why buyers must use model-level data. They are not universal ratings for every 21700 battery.
“21700” tells you the approximate format. The data sheet tells you whether the cell can do the job.
Inside a 21700 Lithium-Ion Cell
A typical cylindrical 21700 cell contains long coated electrode sheets separated by porous insulating film. These layers are wound into a compact “jelly roll,” connected to tabs, inserted into a metal can, filled with electrolyte, and sealed beneath the cap assembly.
Cathode and Anode
The cathode material helps define the cell’s voltage, energy, power, thermal characteristics, and aging behavior. The anode is commonly carbon based, sometimes with silicon-containing materials depending on the design. A 21700 is not automatically NMC: manufacturers can use different chemistry families and formulations.
Separator and Electrolyte
The separator keeps the electrodes from touching electronically while allowing lithium-ion transport. The electrolyte carries ions between the electrodes. Both are sealed inside the cell and are not user-serviceable.
Can, Terminals, and Safety Components
The steel can encloses the wound assembly. The cap and gasket electrically isolate and seal the positive terminal. Depending on the model, the cell may include a current interrupt device, positive temperature coefficient device, and designed venting features. These safety layers reduce risk but do not replace correct charging, current control, thermal management, or pack protection.
Types of 21700 Batteries
There is no single two-type classification. Buyers should consider chemistry, power-versus-energy design, protection, and terminal style separately.
High-Energy and High-Power Cells
Energy-oriented cells prioritize runtime and watt-hours per cell. Power-oriented cells prioritize lower impedance and higher current delivery. These goals involve tradeoffs, so the cell with the highest mAh rating may not be the best choice for a demanding motor or other high-load application.
Common Chemistry Families
| Label or Family | General Character | Important Caution |
|---|---|---|
| INR / NMC family | Often balances capacity, current capability, and cycle performance | Ratings vary widely by formulation and model |
| NCA family | Commonly associated with energy-oriented cylindrical designs | Use the exact manufacturer’s electrical and thermal limits |
| IMR / manganese-rich family | Often associated with power capability and thermal stability | The label alone does not establish an allowable current |
| IFR / lithium iron phosphate | Lower nominal voltage with strong thermal stability and cycle-life potential | Not charge-compatible with common 3.6/3.7 V lithium-ion cells unless the system is designed for it |
Protected and Unprotected 21700 Cells
A protected 21700 normally has an added electronic protection circuit attached to the base cell. The circuit may disconnect the cell under defined overcharge, over-discharge, overcurrent, or short-circuit conditions. An unprotected cell lacks this added cell-level board and relies on suitable protection in the device or battery pack.
The added board, conductor, button terminal, and wrapper can make a protected cell longer than a bare cell. Always request the finished dimensions. A protected cell is not the same as a complete pack BMS, and the terms PCB, PCM, and BMS should not be used interchangeably without defining the actual functions.
Flat Top and Button Top
Flat top and button top describe the positive-terminal geometry. Many industrial cells are flat top, while some removable consumer cells use a raised button top. Terminal style does not prove chemistry or protection status. It only becomes useful when evaluated with the complete specification.
21700 vs. 18650 Battery: What Is the Difference?
The 21700 format is 3 mm wider and 5 mm longer than the nominal 18650 format. That larger cylindrical volume gives designers more room for active material and can support greater capacity, higher power, or a different balance between the two. It also makes the cell heavier and requires more installation space.
| Factor | 18650 | 21700 |
|---|---|---|
| Nominal bare-cell format | About 18 × 65 mm | About 21 × 70 mm |
| Cell volume | Smaller | Larger |
| Capacity potential | Lower per cell when comparing similar generations and design goals | More room for capacity per cell |
| Power potential | Many mature high-power choices | More room for low-impedance, high-power designs |
| Pack design | Can fit more cells in constrained geometries | May reach an energy target with fewer cells, depending on design |
| Weight and space | Lower per cell | Higher per cell |
| Interchangeability | Not directly interchangeable; holder, contacts, voltage, current, protection, and charger must all be compatible | |
Is 21700 Always Better Than 18650?
No. A 21700 can be advantageous when runtime, power, or reducing cell count matters and the enclosure can accept the larger format. An 18650 may remain preferable for compact products, established tooling, existing holders, or a supply chain already validated around a particular model. Compare actual cells and pack-level results rather than cell names alone.
Common 21700 Battery Applications
Power Tools and Garden Equipment
High-power 21700 cells can support motors that need substantial current. Cell impedance, current rating, pack cooling, interconnects, and BMS limits are as important as capacity.
Electric Mobility
The format is used in professionally engineered traction and mobility packs. Pack suitability depends on much more than the cell: configuration, propagation control, mechanical protection, cooling, sensing, charging, and validation all matter.
Flashlights and Portable Equipment
A compatible 21700 can extend runtime or support high output. Removable-cell products may require a particular button or flat terminal, protection status, and finished length. Follow the device maker’s instructions.
Industrial and Backup Systems
Robotics, inspection tools, communications equipment, and backup-power products can benefit from high energy per cell. Designers should prioritize traceability, long-term availability, operating temperature, reliability data, and certification needs.
Custom Battery Packs
For OEM projects, the cell is one component of a complete system. The pack must address cell matching, spacing, interconnect resistance, insulation, fusing, sensing, enclosure design, thermal behavior, charger communication, transportation, and end-product compliance.
How to Choose the Right 21700 Battery
- Define pack voltage and configuration. Determine series and parallel requirements from the load and runtime target.
- Build a real load profile. Include continuous current, startup peaks, pulse duration, duty cycle, and low-temperature operation.
- Compare watt-hours, not mAh alone. Energy equals capacity in amp-hours multiplied by voltage; compare values under relevant test conditions.
- Check voltage sag and heat. Review impedance and discharge curves at the required current and temperature.
- Verify charge requirements. Match chemistry, maximum voltage, current, cutoff behavior, temperature sensing, and charging time.
- Confirm mechanical fit. Use maximum diameter and height from the drawing, not nominal format names.
- Define protection architecture. Confirm whether the product expects a protected removable cell or a bare cell managed by a pack-level PCM/BMS.
- Evaluate cycle-life conditions. Compare data at similar depth of discharge, current, temperature, and capacity-retention endpoints.
- Buy through a traceable channel. Avoid unknown rewraps and implausible specifications. Retain manufacturer, model, lot, and test records.
- Validate the completed system. A reputable cell does not automatically make a compliant pack or end product.

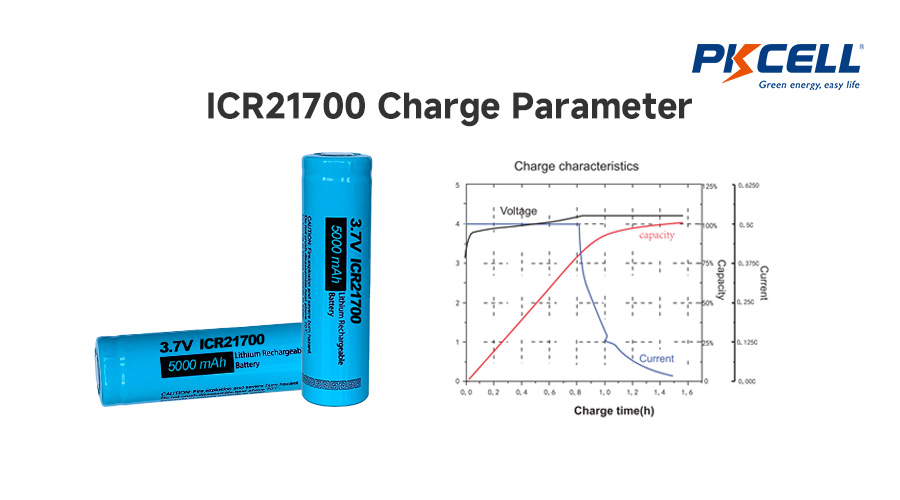

Charging, Storage, and Safety
Use a Compatible Charger
The charger must support the cell’s chemistry, maximum charge voltage, current, temperature requirements, and physical length. A charger labeled only “lithium” is not enough information. Follow both the cell and equipment manufacturer’s instructions.
Inspect Before Use
Do not use a cell with a dented can, damaged terminal, torn wrapper, missing top insulator, corrosion, leakage, swelling, unusual odor, or a history of overheating. Prevent loose cells from contacting metal objects during storage or transport.
Store Under Controlled Conditions
Keep cells in a dry, temperature-controlled location away from heat, direct sunlight, combustible materials, and conductive objects. For extended storage, many suppliers recommend a partial state of charge, but the exact level and inspection interval should follow the cell maker’s guidance.
Do Not Mix Cells
Do not combine different models, capacities, ages, lots, states of charge, or usage histories in one pack. Professional pack production requires controlled cell matching and validated joining processes.
Frequently Asked Questions
What does 21700 mean on a battery?
It identifies a cylindrical cell format with nominal dimensions of roughly 21 mm diameter and 70 mm length. Actual maximum dimensions can differ, especially when a protection circuit, button top, or charging hardware is added.
What voltage is a 21700 battery?
Many common lithium-ion 21700 cells are rated around 3.6 or 3.7 V nominal and use a 4.2 V charge limit, but this is not universal. Check the exact model’s chemistry and data sheet before selecting a charger or designing a pack.
How many mAh does a 21700 battery have?
Many energy-oriented models are in the 4,000–5,000 mAh class, while high-power and newer designs can differ. Capacity must be read together with minimum capacity, current rating, temperature, and test conditions.
Are 21700 batteries better than 18650 batteries?
They can provide more capacity or power per cell, but they also require more space and add weight. The better format depends on enclosure, current, runtime, thermal design, supply, cost, and validation requirements.
Can a 21700 replace an 18650?
Not directly. A 21700 is wider and longer. Even when an adapter is available for a particular device, voltage, current, terminal, protection, charger, and manufacturer approval must still match.
How long does a 21700 battery last?
There is no universal cycle count. Life depends on the cell model, charge voltage, depth of discharge, current, temperature, storage state, and end-of-life definition. Use the manufacturer’s cycle-life graph under conditions close to the application.
Are all 21700 cells protected?
No. Both protected retail cells and unprotected industrial cells are available. Confirm the actual protection functions and finished dimensions from supplier documentation.
Can I build a 21700 battery pack myself?
Pack assembly introduces shock, fire, thermal, mechanical, transport, and compliance risks. Commercial and safety-critical packs should be designed and validated by qualified battery engineers or manufacturers.
Conclusion
The 21700 lithium battery format gives designers useful room for energy and power, but size alone does not determine performance. A reliable decision requires the exact cell data sheet, a realistic load profile, verified mechanical fit, compatible charging, an appropriate protection strategy, and final system validation.
Compare cells by voltage, watt-hours, current, impedance, temperature, cycle-test conditions, dimensions, protection, traceability, and approved use. That approach produces a better result than choosing the highest mAh number on a wrapper.
